Automatic Electric Two-component Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine

Name: Automatic Electric Twocomponent Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine
Brand: Robotsung
Price: 3 USD

Buy cheap Automatic Electric Two-component Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine product

video outgoing-inspection : Provided

core components : Motor

warranty : 1 Year

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Advertising Company

machinery test report : Provided

Marketing Type : Ordinary Product

Showroom Location : None

Warranty of core components : 1 Year

Feature : automatic

Place of Origin : Guangdong, China

Weight (kg) : 80

Condition : New

Brand Name : Robotsung

Price : $3,600-3,800 / set

MOQ : 1 set

Contact Now

Product Description

Product Application

Dispenser can be applied to the following areas:
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Small transformers, SMD transformers, relays, small coil motors.
3. Communications industry: the phone keypad, mobile phone casing bonding, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys, chassis bonding
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts fixed and dust and moisture protection, LCD liquid crystal screen, etc.
7 Optics: optical lenses, bald, head
8 Mechanical Hardware
9 Battery Box Sealed
10 Trademarks fixed bond
11.LED industry, widely used in LED industry, LED dispenser

Glue dispenser Specification
YS-D331E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		300x300x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius
YS-D441E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		400x400x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius
YS-D551E	Working area(X/Y/Zmm)	Resolution 0.01mm	Drive mode Micro Stepping Motor
		500x500x100	Repeatability +/-0.01mm	Power 220V /110V
		Max. Speed 500mm/sec	Display 5.7’ LCD	Temperature:5-40 degrees Celsius

Automatic Electric Two-component Adhesive Filling Silicone Epoxy Resin Mixing Ab Glue Potting Machine

Main Features

1) Full automatic robot glue dispenser, 3 axis. Locate precisely.

2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
7) Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Certifications

Detailed Images

Machine Parts

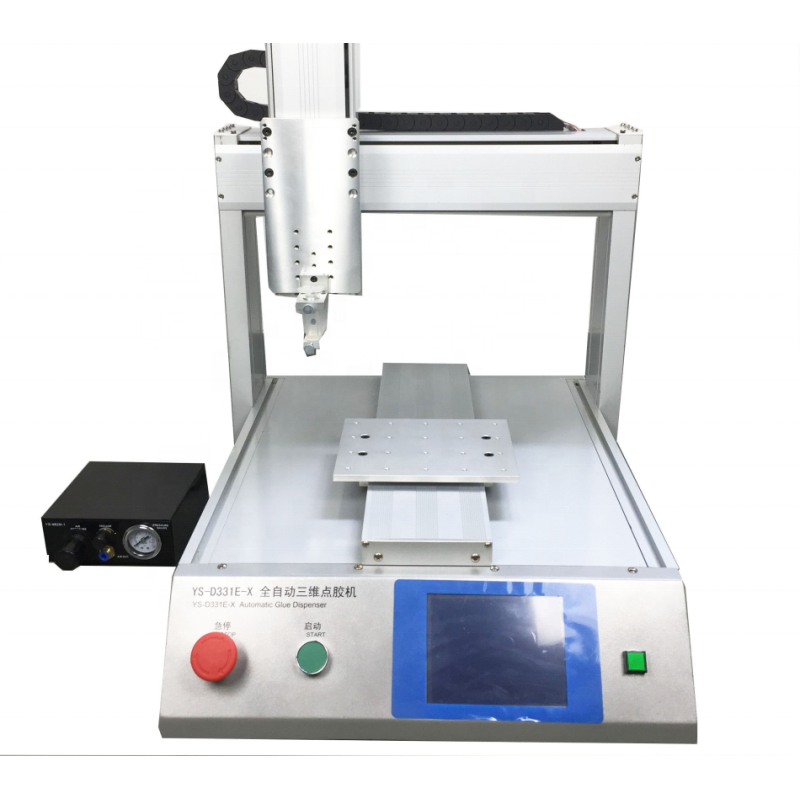

Name: Glue dispenser

Brand: Robotsung

Original: Shenzhen,China

Main Features

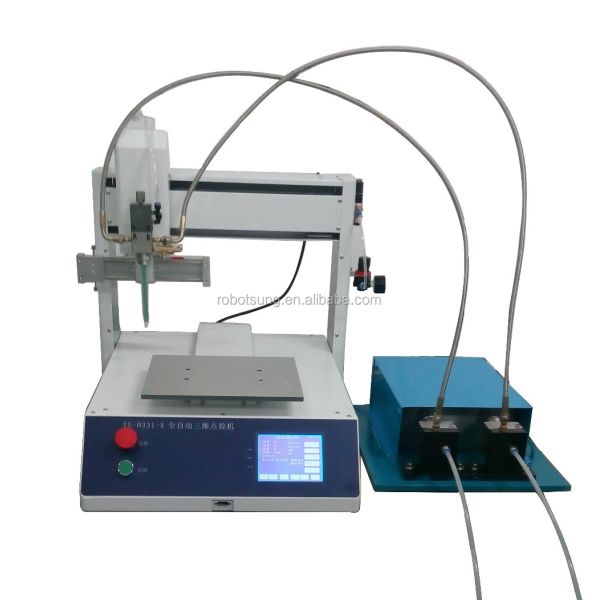

Name: Auto glie mixer
Mix AB glue automaticly as the ratio and feed glue to glue machine .

Machine Parts

Name: Glue Dispenser

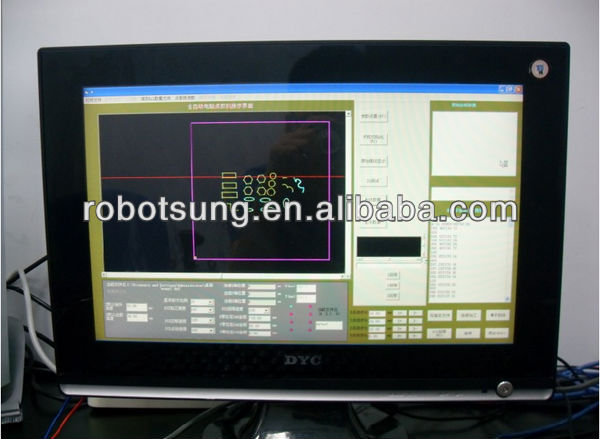

Programme file by PC or machine

Material

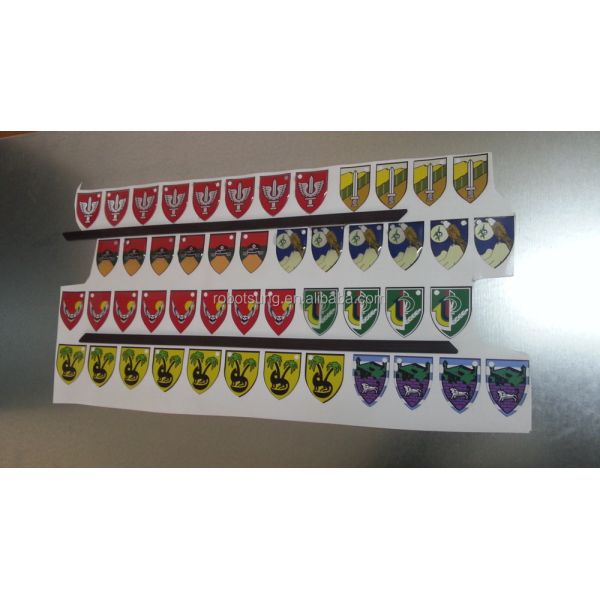

Suitable for all kinds of stickers or labels,key rings or other decorations

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	300(L) * 300 (W) * 60 (D)
Weight	60KG

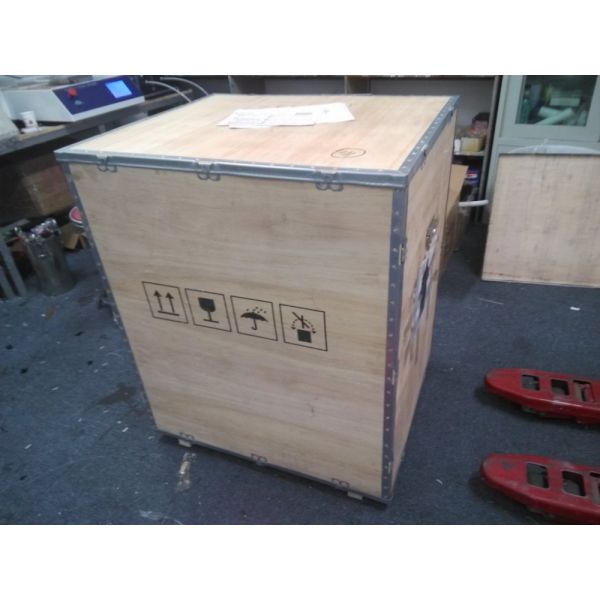

Packaging Details	The normal package is wooden box(300(L) * 300 (W) * 60 (D)). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	400(L) * 600 (W) * 60 (D)
Weight	60KG
Packaging Details	The normal package is wooden box(400(L) * 600 (W) * 60 (D)). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

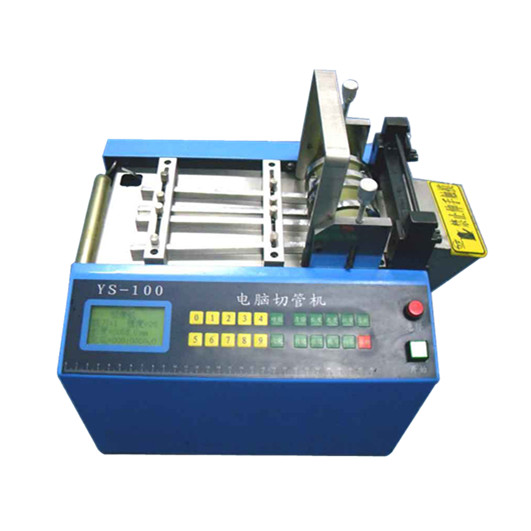

Automatic cutting machine

91.8% Response Rate

Automatic PCB separator

91.8% Response Rate

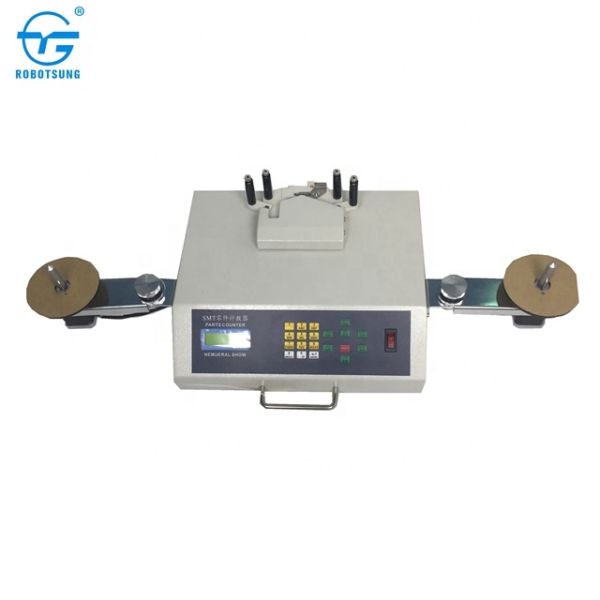

SMD counter
